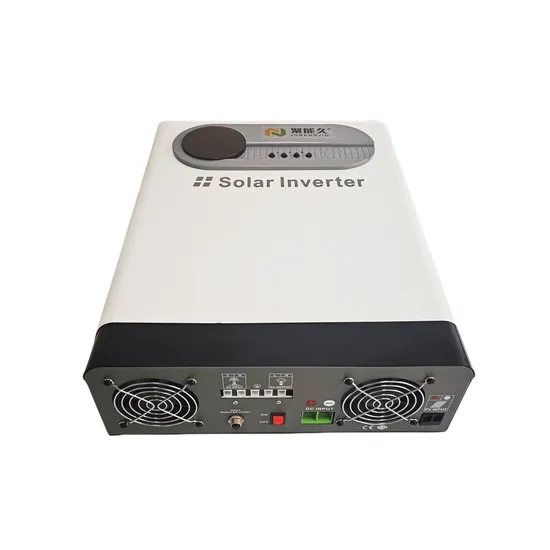

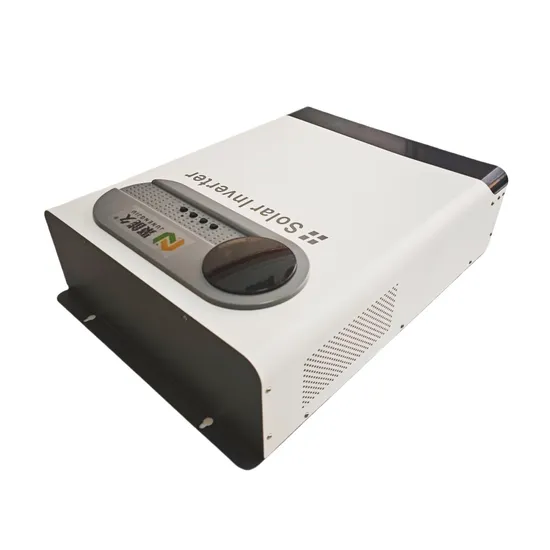

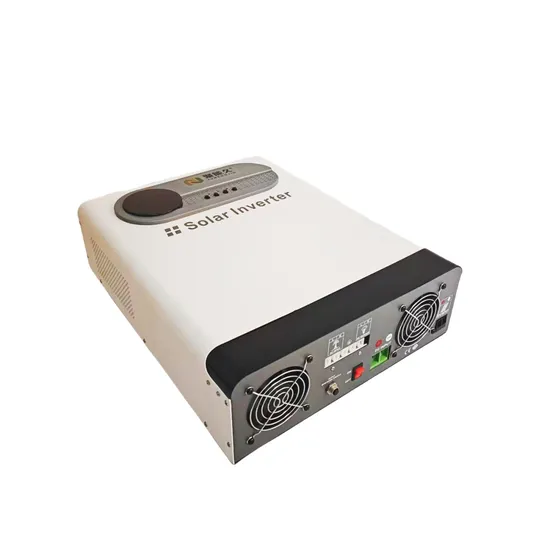

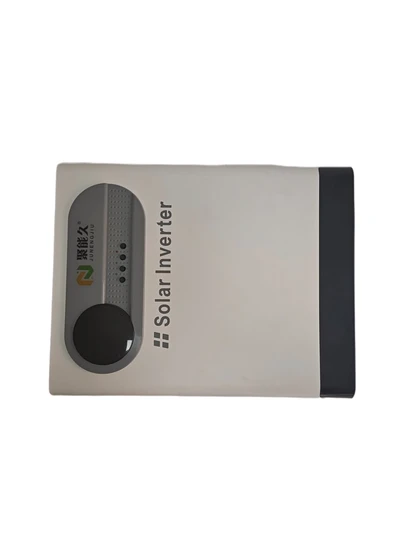

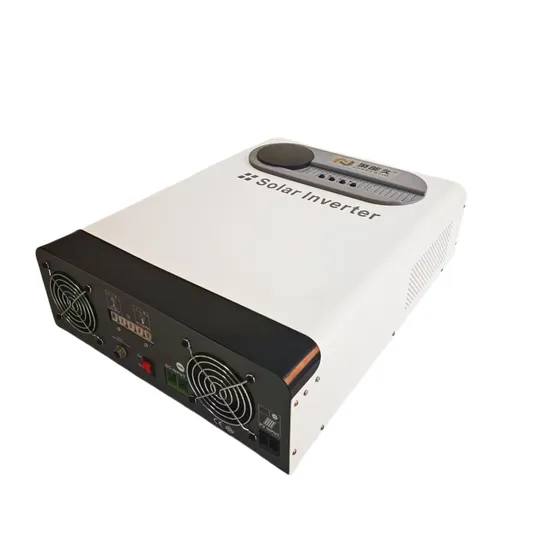

JNJ-2000-12/JNJ-3000-24 Off Grid Solar Inverter
Hover to zoom
products.categories.3
JNJ-2000-12/JNJ-3000-24 Off Grid Solar Inverter
High-Efficiency Off Grid Solar Inverter for Residential and Commercial Applications
Features
- Pure sine wave solar inverter
- WIFI & GPRS available for iOS and Android
- Built-in 80A MPPT solar charger
- High PV input voltage range (30~400VDC)
- Built-in anti-dust kit for harsh environment
- Smart battery charge design to optimize battery life
- Meet rich customized demands
- Compatible with lithium battery
- Solar energy is provided directly to the load first
Specifications
Model NumberJNJ-2000-12/JNJ-3000-24
Rated Power2000VA/3000VA
AC Input Voltage220VAC
AC Input Selectable Voltage Range170V~280VAC(For Personal Computer), 90V~280VAC(For Home Appliances)
AC Input Frequency Range50HZ
AC Output Voltage Regulation220VAC±5%
AC Output Surge Power4000VA/6000VA
AC Output Efficiency(Peak) PV to INV98%
AC Output Efficiency(Peak) Battery to INV94%
AC Output Transfer Time10ms(For Personal Computer), 20ms(For Home Appliances)
Battery Voltage12VDC/24VDC
Battery Floating Charge Voltage13.5VDC/27VDC
Battery Overcharge Protection16VDC/33VDC
Solar Charger TypeMPPT
Maximum PV Array Power3000W
MPPT Range @ Operating Voltage30~400VDC
Maximum PV Array Open Circuit400VDC
Max Input Current13A
Maximum Solar Charging Current80A
Maximum AC Charging Current60A
Maximum Solar+AC Charging Current80A
Communication InterfaceRS232/WIFI/GPRS
Humidity5%~95%RH
Operating Temperature-10~+50°C
Compliance SafetyCE
